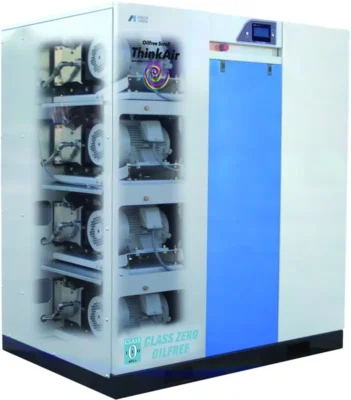

SLPE-220E
Leading Japanese compressor manufacturer and majority owner of SCR Comp, Anest Iwata first invented the scroll airend in 1991 and as the class leading manufacturer, they still supply their scroll airend other leading scroll compressor manufacturers such as Atlas Copco. Anest Iwata scroll compressors are exceptionally quiet, reliable and compact with a class zero certification to ISO8573. We can also supply replacement scroll airends for other compressor brands using Anest Iwata scroll pumps. Please contact us for more information.
- Exceptional oil free air quality to ISO8573-1
- Compact Floor mounted design
- Low noise operation tested to ISO11201
- Energy saving cascade control
- Up to 10,000 maintenance free operation
- Low maintenance costs
- Optional membrane dryers and tanks (model dependent)
- IE3 High Efficiency Motor
- Minimal Vibration
- UK Based Technical Support
This model
| Output m³/min @ 7.0 barg: | n/a |
| Output CFM @ 7.0 barg: | n/a |
| Output m³/min @ 8.0 barg: | 2.42 |
| Output CFM @ 8.0 barg: | 86 |
| Output m³/min @ 10.0 barg: | 2.01 |
| Output CFM @ 10.0 barg: | 71 |
| Motor (kW): | 21.99 |
| Oil Free or Injected: | Oil Free |
| Receiver Mounted: | No |
| Receiver Size: | |
| Speed Fixed or Variable: | Fixed |
| Drive (belt or direct): | Belt |
| Cooling (air or water): | Air |
| Dimensions (mm) LxWxH: | 1370 x 955 x 1555 |
| Weight (kg): | 745 |
| Pipe Size: | 1.5" |
