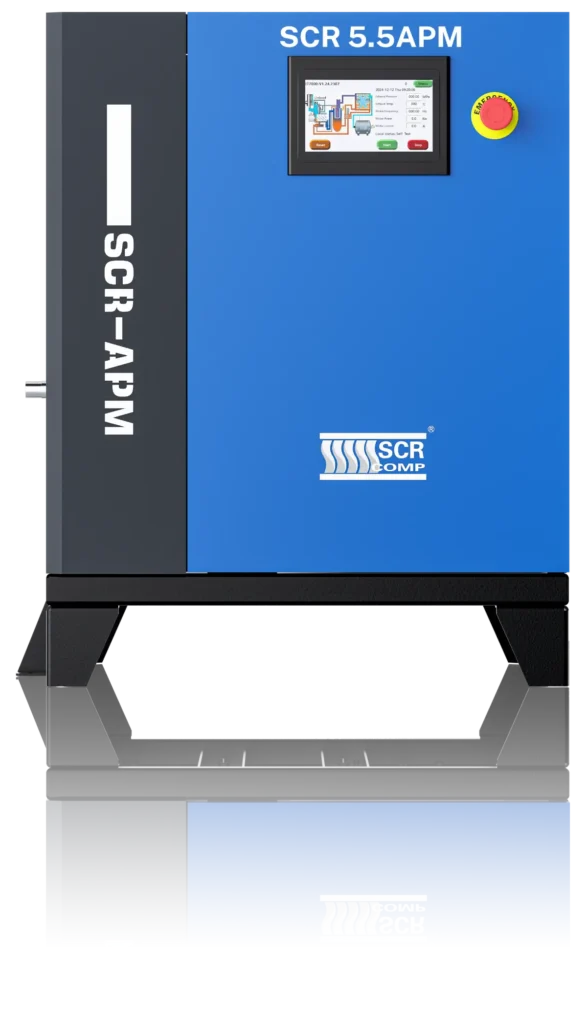

SCR5.5APM

Our best selling APM machine is now available in three smaller kW ratings, ideal for lower air demand users that still require compressed air for long periods. Super quiet operation with the same IE4 permanent magnet variable speed motor, 1:1 direct drive with a wide operating speed range. Energy savings on average of 30% over a fixed speed equivalent. All packaged in a compact footprint with a user friendly 7” touchscreen controller. Complete with a 2 year parts and labour warranty, extendable upto 5 years with our protected warranty package.

• 4.7kW Variable Speed Screw Compressor
• Compact base mounted
• Permanent magnet ‘Super Premium Efficiency’ IE4 motor
• Low noise operation ~65dB
• Maximum Energy Saving potential
• Oil Cooled IP65 motor
• Bearing free motor design
• 1:1 Direct Drive
• Wide operating Speed
• Combined after Cooler
• Pure Soft start
• Simple to service and maintain
• 7” Intuitive colour touchscreen
• On Board Scheduling for automatic timed start and stop times
• Compact design
• Automatic restart on power failure
• Low component count
• ½” BSP Outlet
• 0.68m3 per min at maximum Speed -0.27m3 per min at minimum speed at 8 bar
• 0.51m3 per min at maximum Speed -0.2m3 per min at minimum speed at 10 bar
• 650mm (L) x 600mm (D) x 860mm (H)
• Weight 180kg
