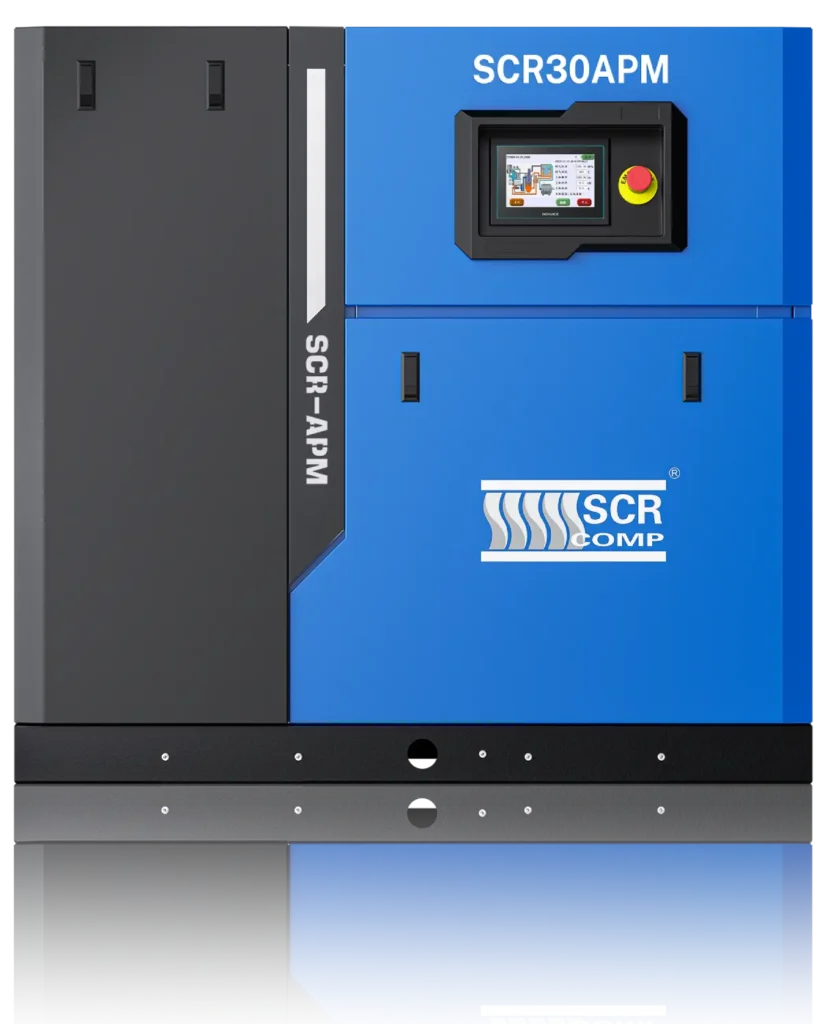

SCR30APM

APM series – High efficiency oil cooled IE4 permanent magnet motor technology with 1:1 direct drive, with variable speed cooling fan above 15kW for maximum efficiency and reduced noise. Oversized air end gives high flow and reduced mechanical stress. Exceptionally quiet operation, compact footprint, full colour touchscreen controller, 25% to 100% speed range, 30% oversized cooler and separator, now available up to 16 bar.

• 22kW Variable Speed Screw Compressor
• Compact base mounted
• Permanent Magnet ‘Super Premium Efficiency’ IE4 motor
• Low noise operation ~68dB
• Maximum Energy Saving potential
• Oil Cooled IP65 motor
• Bearing free motor design
• 1:1 Direct Drive
• Wide operating Speed
• Combined after Cooler
• Pure Soft start
• Simple to service and maintain
• 7” Intuitive colour touchscreen
• On Board Scheduling for automatic timed start and stop times
• Compact design
• Automatic restart on power failure
• Low component count
• Solid Seamless steel pipework
• Unique LED Status traffic light design
• 3/4” BSP Outlet
• 2 Year Full parts and labour warranty extendable upto 7 years
• 3.4m3 per min at maximum Speed -0.85m3 per min at minimum speed at 8 bar
• 3.0m3 per min at maximum Speed -0.7m3 per min at minimum speed at 10 bar
• 1.9m3 per min at Maximum Speed – 0.90m3 per min at minimum speed at 15 bar
• 1.8m3 per min at Maximum Speed – 0.85m3 per min at minimum speed at 16 bar
• 1180mm (L) x 820mm (D) x 1150mm (H)
• Weight 350kg
