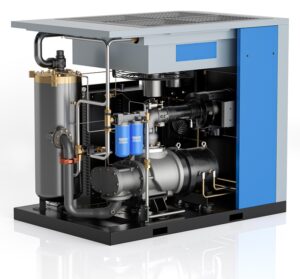

SCR300EPM2
EPM2 series – Ultra high efficiency oil cooled IE4 permanent magnet motor technology with 1:1 direct drive. Oversized air end gives high flow output compared to standard machines. Exceptionally quiet operation, variable speed cooling fan, compact footprint, full colour touchscreen controller, 25% to 100% speed range, 30% oversized cooler and separator.
- 250kW Variable Speed Screw Compressor
- Innovative 2 stage Airend with inline boosting technology
- Permanent magnet ‘Super Premium Efficiency’ IE4 motor
- Low noise operation ~65dB
- Maximum Energy Saving potential
- Independent Liquid Cooled IP65 motor
- Bearing free motor design
- 1:1 Direct Drive
- Wide operating Speed
- Pure Soft start
- Simple to service and maintain
- 7” Intuitive colour touchscreen
- On Board Scheduling for automatic timed start and stop times
- RS485 connectivity as standard
- Remote moitoring option
- Compact design
- Low component count
- Optional Water Cooled version vailable
- DN100 Outlet
- 46.0m3 per min at maximum Speed -13.8m3 per min at minimum speed at 8 bar
- 42.0m3 per min at maximum Speed -12.6m3 per min at minimum speed at 10 bar
- 3400mm (L) x 2200mm (D) x 2100mm (H)
- Weight 6500kg
This model
| Output m³/min @ 7.0 barg: | 47 |
| Output CFM @ 7.0 barg: | 1660 |
| Output m³/min @ 8.0 barg: | 46 |
| Output CFM @ 8.0 barg: | 1624 |
| Output m³/min @ 10.0 barg: | 42 |
| Output CFM @ 10.0 barg: | 1483 |
| Motor (kW): | 250 |
| Oil Free or Injected: | Injected |
| Receiver Mounted: | No |
| Receiver Size: | |
| Speed Fixed or Variable: | Variable |
| Drive (belt or direct): | Direct |
| Cooling (air or water): | Either |
| Dimensions (mm) LxWxH: | 3400 x 2200 x 2103 |
| Weight (kg): | 6500 |
| Pipe Size: |
