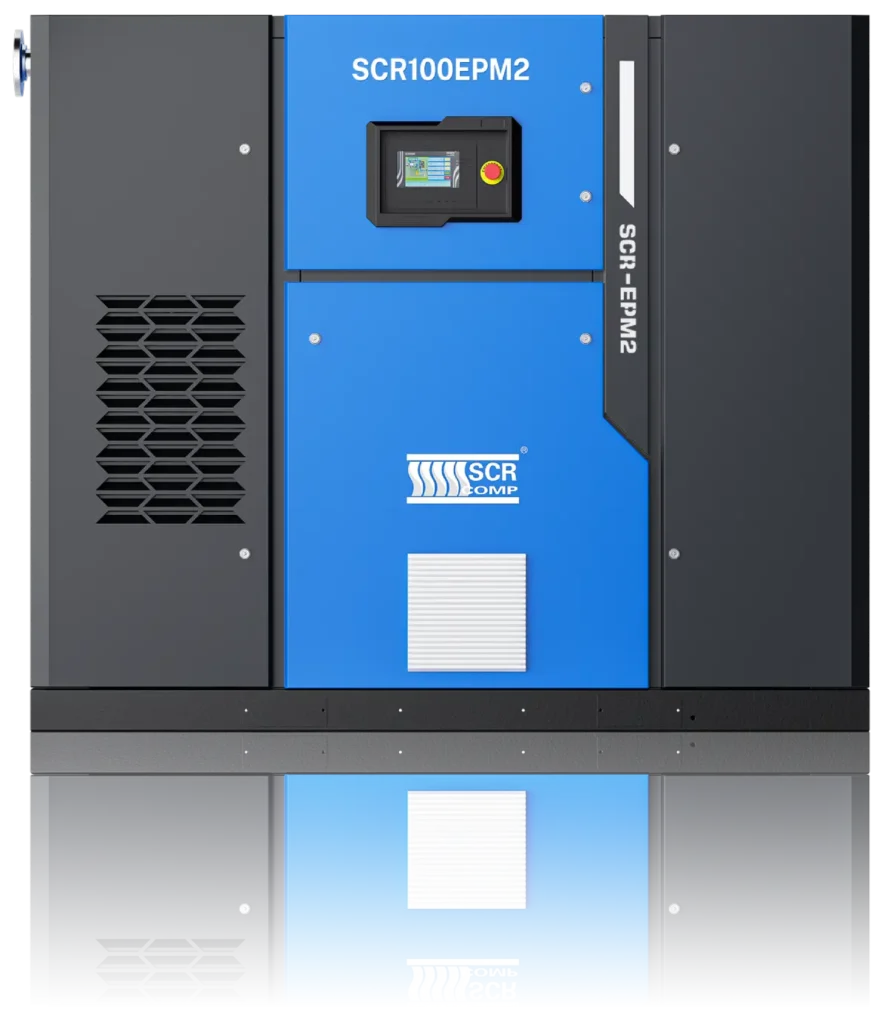

SCR100EPM2
EPM2 series – Ultra high efficiency oil cooled IE4 permanent magnet motor technology with 1:1 direct drive. Oversized air end gives high flow output compared to standard machines. Exceptionally quiet operation, variable speed cooling fan, compact footprint, full colour touchscreen controller, 25% to 100% speed range, 30% oversized cooler and separator.
- Permanent Magnet ‘Super Premium Efficiency’ motor
- Oversized High Efficiency Airend
- Up to 25% increase in flow compared to standard compressors
- Low Rotational Speed
- Oil Cooled IP65 motor
- Bearing free motor design
- 1:1 Direct Drive
- Wide operating Speed range from 25% to 100% Speed
- Pure Soft start
- Low noise operation 68dB
- Variable Speed Cooing Fan
- 30% Oversized Separator & Cooler
- Colour touchscreen with built in scheduling
- Compact Footprint
- Easy Access for servicing
- Independent optimal cooling system
- SFK/FAG Bearings
This model
| Output m³/min @ 7.0 barg: | 16.3 |
| Output CFM @ 7.0 barg: | 576 |
| Output m³/min @ 8.0 barg: | 16 |
| Output CFM @ 8.0 barg: | 565 |
| Output m³/min @ 10.0 barg: | 13.7 |
| Output CFM @ 10.0 barg: | 484 |
| Motor (kW): | 75 |
| Oil Free or Injected: | Injected |
| Receiver Mounted: | No |
| Receiver Size: | |
| Speed Fixed or Variable: | Variable |
| Drive (belt or direct): | Direct |
| Cooling (air or water): | Air |
| Dimensions (mm) LxWxH: | 2280 x 1500 x 1950 |
| Weight (kg): | 2010 |
| Pipe Size: | DN65 |
